1 HP Motor

0 +
SOLD UNITS
title-box-image

$799.00

1 HP Motor

SKU 53XXX-1 CATEGORY

Best Quality Services

Clear
title-box-image

DESCRIPTION

1 HP Motor

This unique package features a 1HP (750W) multi-firing switched reluctance motor and intelligent controller, designed and developed by Striatech. Your options are for a NEMA 56C or B14 frame.

Unlike its competitors, this smart motor delivers an experience that suits your application through its intelligent control system. This variable speed motor communicates with its internal micro-computer, which constantly monitors conditions and reacting to its environment. This micro-computer is monitoring the rotor constantly, and when the load is put onto the spindle, more power will be provided to the electric magnets to pull the rotor around, thus maintaining a constant RPM regardless of the load. This key feature helps deliver up to a 50% energy savings over comparable motors.

Maintenance is easier on a Striatech motor. Because its windings are in the stator (rather than wrapped around the rotor), there is no centripetal force pulling the windings, and therefore no need to ever re-wind ever again. With simple construction and no permanent magnets, brushes and commutators, this motor is truly built to last.

The control system is so precise that it can also function as a stepper motor, in addition to its usual variable speed option. This motor can reach speeds from 100-6000 RPM in forward or reverse. This motor also features a built-in USB connection for easy firmware updates. It is compatible at 115 V – 240 V, 50 Hz – 60 Hz Single Phase Input.

The SKUs available on this motor include 53018 (NEMA56C) and 53019 (B14).

The Instruction Manual (PDF format) can be downloaded from HERE

[ipages id=”3″]

A. TEMPLATES

Use them to make sure that your motor can be retrofitted with the 1HP / 750W  Striatech Intelligent Motor

750W Controller (1 page PDF file) – download from HERE

750W Motor – IEC B14 (1 page PDF file) – download from HERE

750W Motor – NEMA 56C (1 page PDF file) – download from HERE

B. 3D CAD FILES

Import them in your favorite CAD/CAM software to check they will fit into your project.

It is common to the two frames and can be downloaded from HERE

C. DRAWINGS

Use them to show outer dimensions, shaft information, and mounting information to allow you to verify that the motor will fit into your application.

1-1 IEC MOUNTING TEMPLATE (1 page PDF file) – download from HERE

1-1 NEMA MOUNTING TEMPLATE (1 page PDF file) – download from HERE

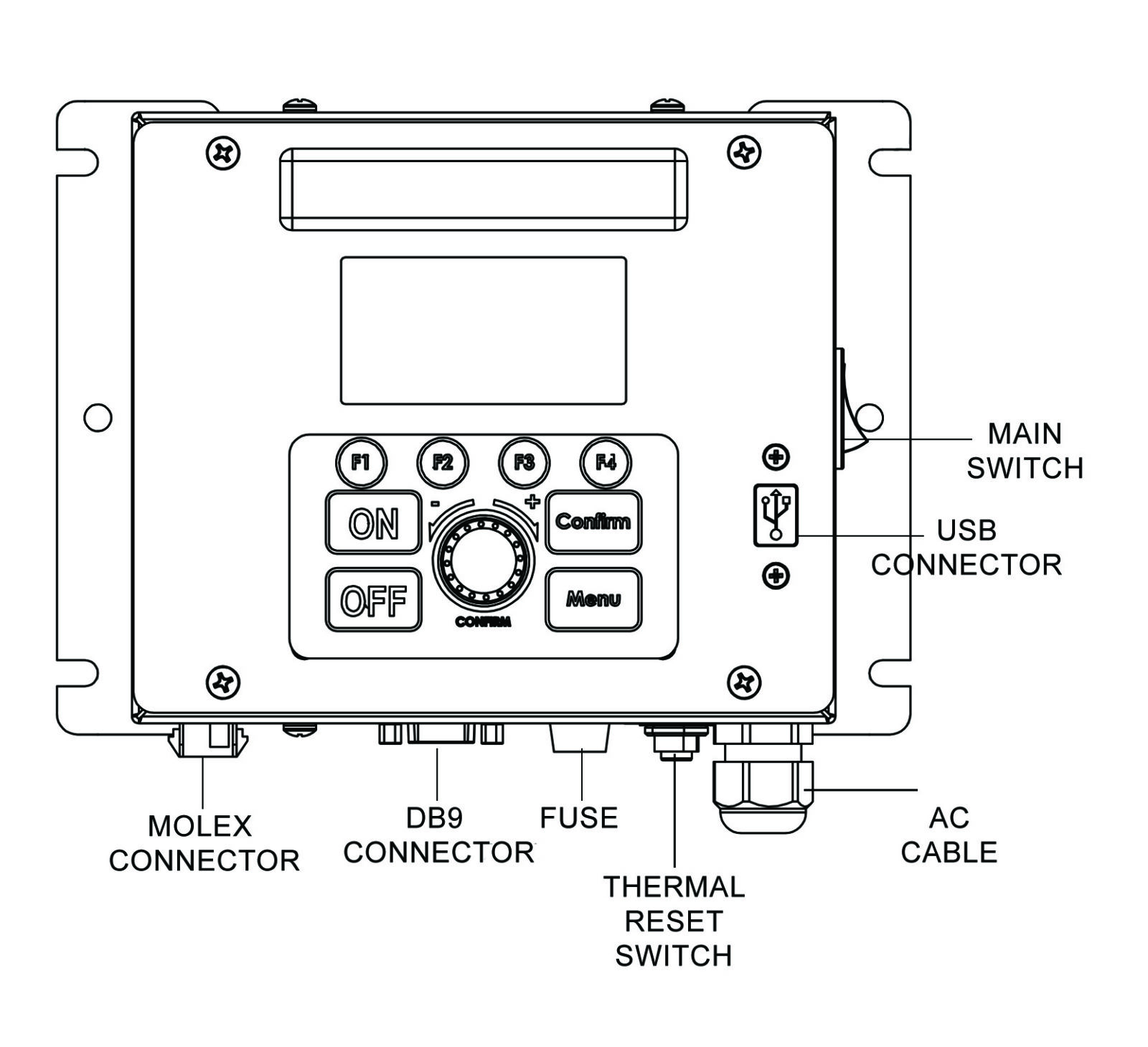

Controller-diagram (1 page) – download from HERE

This unique package features a 1HP (750W) multi-firing switched reluctance motor and intelligent controller, designed and developed by Striatech. Your options are for a NEMA 56C or B14 frame.

Unlike its competitors, this smart motor delivers an experience that suits your application through its intelligent control system. This variable speed motor communicates with its internal micro-computer, which constantly monitors conditions and reacting to its environment. This micro-computer is monitoring the rotor constantly, and when the load is put onto the spindle, more power will be provided to the electric magnets to pull the rotor around, thus maintaining a constant RPM regardless of the load. This key feature helps deliver up to a 50% energy savings over comparable motors.

Maintenance is easier on a Striatech motor. Because its windings are in the stator (rather than wrapped around the rotor), there is no centripetal force pulling the windings, and therefore no need to ever re-wind ever again. With simple construction and no permanent magnets, brushes and commutators, this motor is truly built to last.

The control system is so precise that it can also function as a stepper motor, in addition to its usual variable speed option. This motor can reach speeds from 100-6000 RPM in forward or reverse. This motor also features a built-in USB connection for easy firmware updates. It is compatible at 115 V – 240 V, 50 Hz – 60 Hz Single Phase Input.

The SKUs available on this motor include 53018 (NEMA56C) and 53019 (B14).

Frame Size

NEMA56C, B14 80

Speed at Highest Torque

1000
